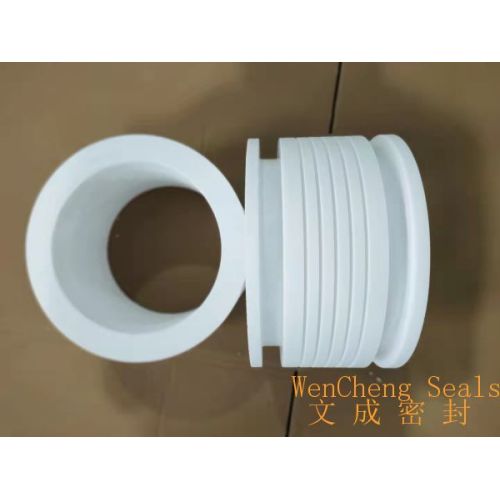

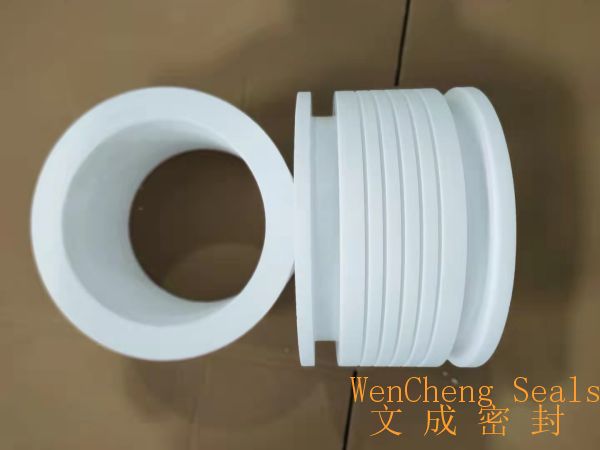

Virgin PTFE Corrugated Pipe

Short Description:

Product Description PTFE tubing: There are three types of PTFE pipes: For a pipe with outside diameter 1-25 mm and thickness of wall 0.1-2.5 mm, we choose polymized PTFE resin and process it by pressing; For a pipe with outside diameter 25-200 mm and thickness of wall 1.5-8 mm, we choose suspended PTFE resin and process it by extruding; For a pipe with outside diameter 25-1200 mm and thickness of wall 5-500 mm, we process it by die pressing.   Application: Insulated pipe casing for wire, pipe...

• FOB Price:US $0.5 - 9,999 / Piece
• Min.Order Quantity:100 Piece/Pieces
• Supply Ability:10000 Piece/Pieces per Month
• Port:Shanghai
• Payment Terms:L/C,D/A,D/P,T/T

Product Description

PTFE tubing:

There are three types of PTFE pipes: For a pipe with outside diameter 1-25 mm and thickness of wall 0.1-2.5 mm, we choose polymized PTFE resin and process it by pressing; For a pipe with outside diameter 25-200 mm and thickness of wall 1.5-8 mm, we choose suspended PTFE resin and process it by extruding; For a pipe with outside diameter 25-1200 mm and thickness of wall 5-500 mm, we process it by die pressing.

Application:

Insulated pipe casing for wire, pipe for corrossive fluids,electric insulated parts used in high frequent conditions.

Feature:

1. Anti-flaming

2. Insulation

3. Anti-aging

4. Corrosion resistant

Main indexes

Apparent density 2.10-2.30 g/cm3

Tensile strength ≥18.0 MPa

Crack elongation ≥230%

Temperature range -180~+260℃
